GI-J6412D14-E2
GI-J6412D14-E2
?1×SO-DIMM SLOT, Support DDR4 3200, Max 16GB
? 1×HDMI 2.0b，2×EDP，支持三屏同步 / 異步顯示
? 12×USB(2×USB3.1, 10×USB2.0), 4×COM, 1×JLPT
? 1×RTL8111H-VB 總線千兆網口
? 1×SATA, 1×M.2 2242 支持 SATA3.0 協議
? 支持網絡喚醒、無盤引導、來電開機等功能
? 適用于零售、自助、一體機、工業控制等行業
Processor System | |
CPU | Intel? Elkhart Lake Celeron J6412 2.00GHz |
Memory | |
Slot Number | 1×SO-DIMM |
Type | DDR4 3200 |
Max Size | 16GB |
Channels | Single |
Graphics | |
Controller | Intel? HD Graphics |
MIPI-DSI | 1，跟 EDP1 同一通道 |
HDMI | 1 |
DP | 0 |
LVDS | 0 |
EDP | 2 |
Multi Display | Triple Displays |
Storage | |
SATA | 1 |
M.2 | 1 |
COM | |
Port Number | 4 |
Mode | 2×R232 2×2*3pin 2.0mm header |
PWR | 5V/12V Optional |
IO & Connector | |

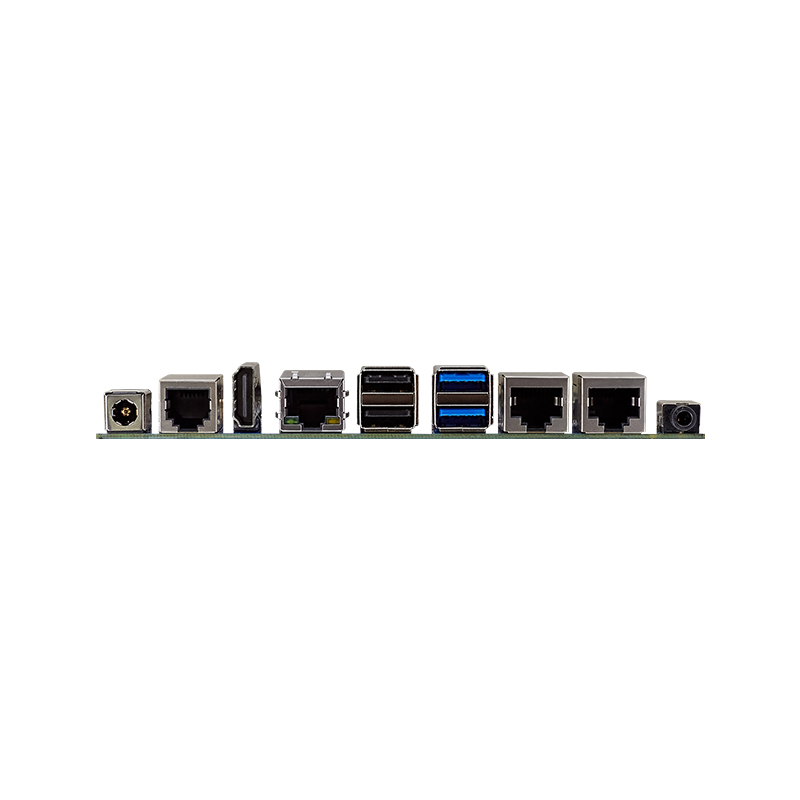

Rear I/O | 1×DC_IN |
1×RJ45, 2×RJ48, 1×RJ11 | |
1×HDMI, 1×Audio | |
1×USB3.1( 雙層 USB3.1 座子 ), 1×USB2.0( 雙層 USB2.0 座 子) | |
1×MIC-IN, 1×LINE-OUT | |
Internal Connector | 2×EDP, 1×JLPT |
1×MIPI-DSI | |
2×JCOM | |
2×JUSB | |
1×Speaker | |
1×SATA3.0, 2×M.2 | |
1×SATA PWR | |
1×mSATA | |
1×DDR4 SO-DIMM | |
1×FPC | |
1×F_Panel | |
1×CLR_COMS | |
1×DC12_OUT | |
Mechanical & Environment | |
Dimension | 150×105mm |
PWR Input | DC 12V |
Operation | -10~50℃ , 5%~95%RH,non-condensing |
Storage | -20~75℃ , 5%~95%RH,non-condensing |
|
