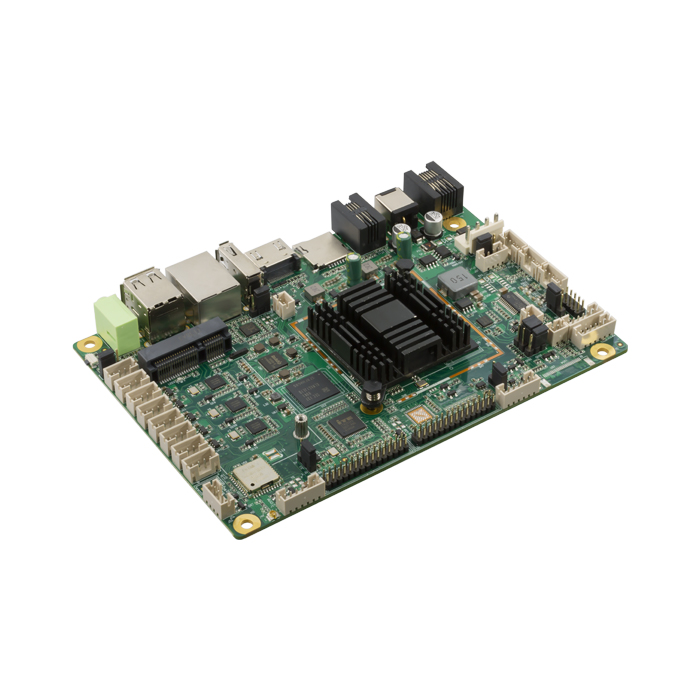

GI-3288-A
GI-3288-A
2G DDR內存，最大支持4GB
eDP/LVDS/MIPI支持雙屏同步/異步顯示
1×USB OTG，10×USB2.0，4×COM，1×RJ45 LAN
1×Mini-PCIe（支持3G/4G）
適用于零售、自助、一體機、工業控制等行業
Processor System | |
CPU | RK3288，ARM Cortex A17，Quad-core，1.8 GHz |
GPU | Controller Mali-T764 Frequency 600 MHz |
Memory | |
Type | DDR3L （2GB） |
Capacity | 2GB(Up to 4 GB) |
Display | |
eDP | 2×eDP Port |
HDMI | 1×HDMI Port, Up to 4K*2K Multiple Display |
LVDS | 2×LVDS Port（LVDS與eDP 二選一) |
MIPI | 1×MIPI_DSI |
Storage | |
eMMC | Capacity 8GB(Up to 64 GB) |
COM | |
Port Number | 4 |
Mode | 2×rs232，1×TTL，1×rs485 |
PWR | 可選5V/12V供電 |
Touch panel | |
Port | I2C Interface and USB Interface |
Ethernet | |
RJ45 | 10/100Mbps |
Wifi /Bluetooth | |
Wifi | 802.11 b/g/n（可選 2.4/5GHz） |
Bluetooth | BT-V5.0 BLE |
Expansion Slot | |
Mini_PCIe | 3G/4G modular |
IO & Connector | |

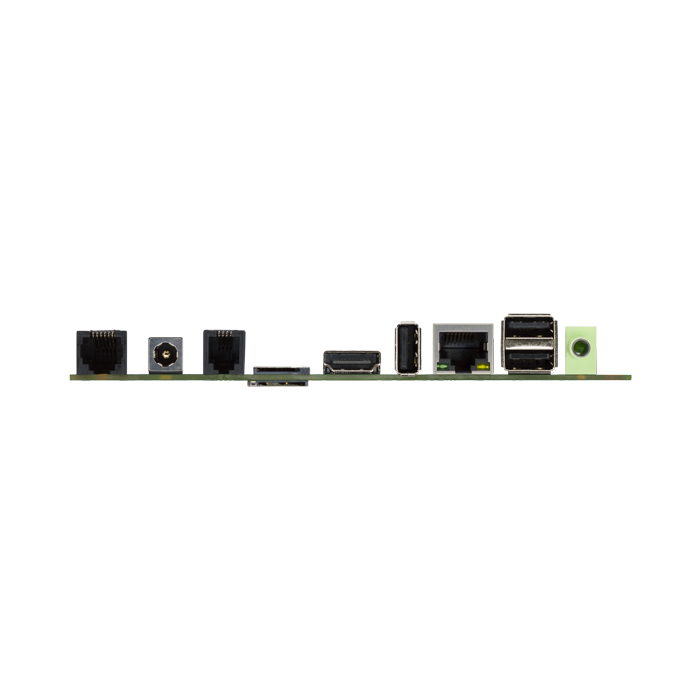

Rear IO | 1×DC_IN,DC12V~24V/2A（DC_Jack or 1x4Pin Wafer）, 24V for printer |
1×RJ11，Cash box controller | |
1×RJ09，rs232 (5V Power) | |
1×SIM Slot(With card tray) | |
| 1×TF Card Up to 64 GB | |
2×USB2.0 1×USB2.0 OTG | |
1×RJ45 10/100 LAN | |
1×HDMI | |
1×Line-out | |
Internal Connector | 2×LVDS/eDP，2×Backlight |
| 1×MIPI_DSI | |
8×USB2.0 | |
2×rs232，1×TTL，1×rs485 | |
1×Speaker port，2*5W, 8Ω | |
2×TP port，I2C Interface | |
GPIO，8ch | |
Mechanical & Environment | |
Dimension | 148mm * 102mm |
PWR Input | DC12V-24V |
Operation | -10~50℃，10%~90%RH，non-condensing |
Storage | -40~75℃，5%~95%RH，non-condensing |
OS | |
Android 7.1、Linux4.4 | |
訂購信息
Configuration | |
G-3288-02A | 在上述標準配置基礎修改電源輸入為12V |
|
