CPU

Intel?   Celeron? J1900 Quad-core processor 2.0GHz

Memory

Slot   Number

1*DDR3L   1333 SO-DIMM 4GB，Up to 8GB

Graphics

Controller

Intel?   HD Graphics for Intel Atom? Processor Z3700 Series

VGA

1

HDMI

1

Storage

HDD

128G   SSD，Different capacity HDD can be configured according to requirements

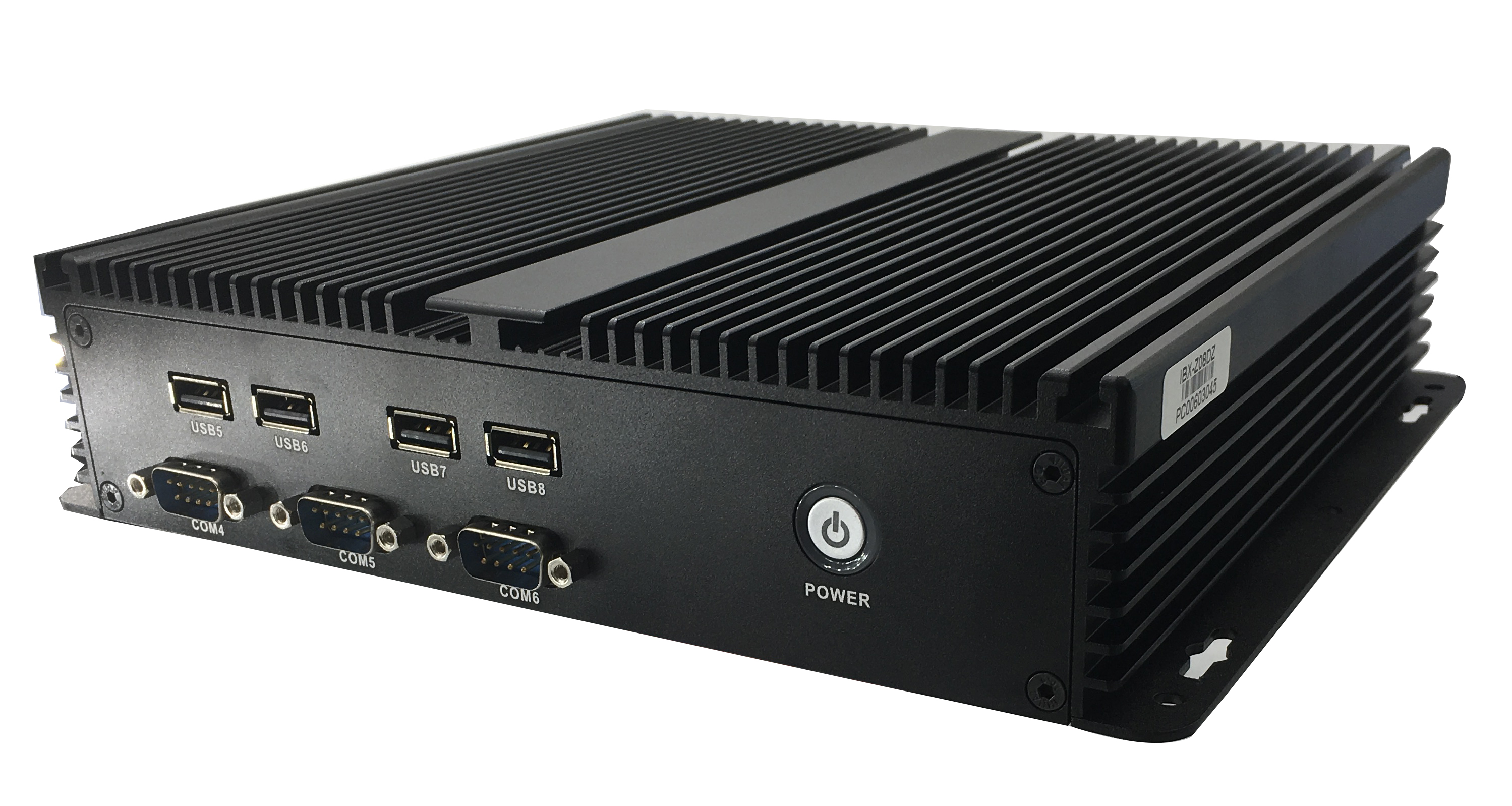

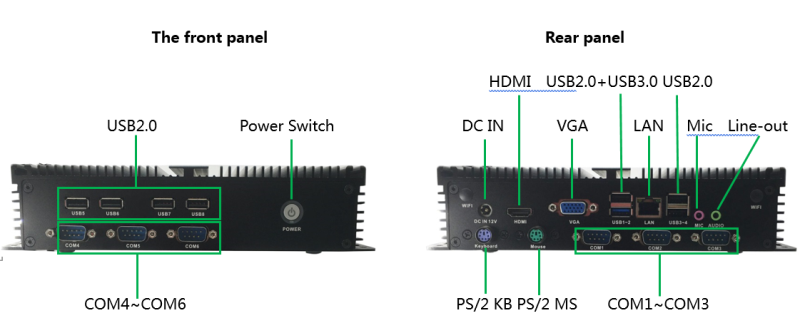

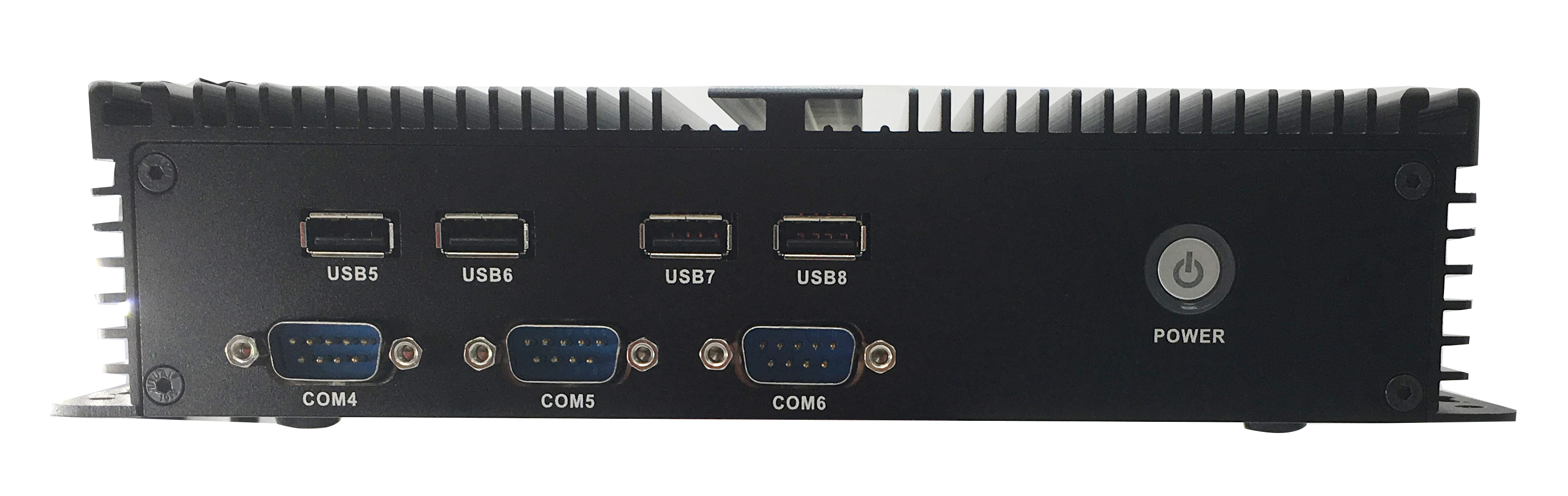

The front panel

USB

4×USB2.0

COM

3×RS232   COM

Switch

1×Power   Switch

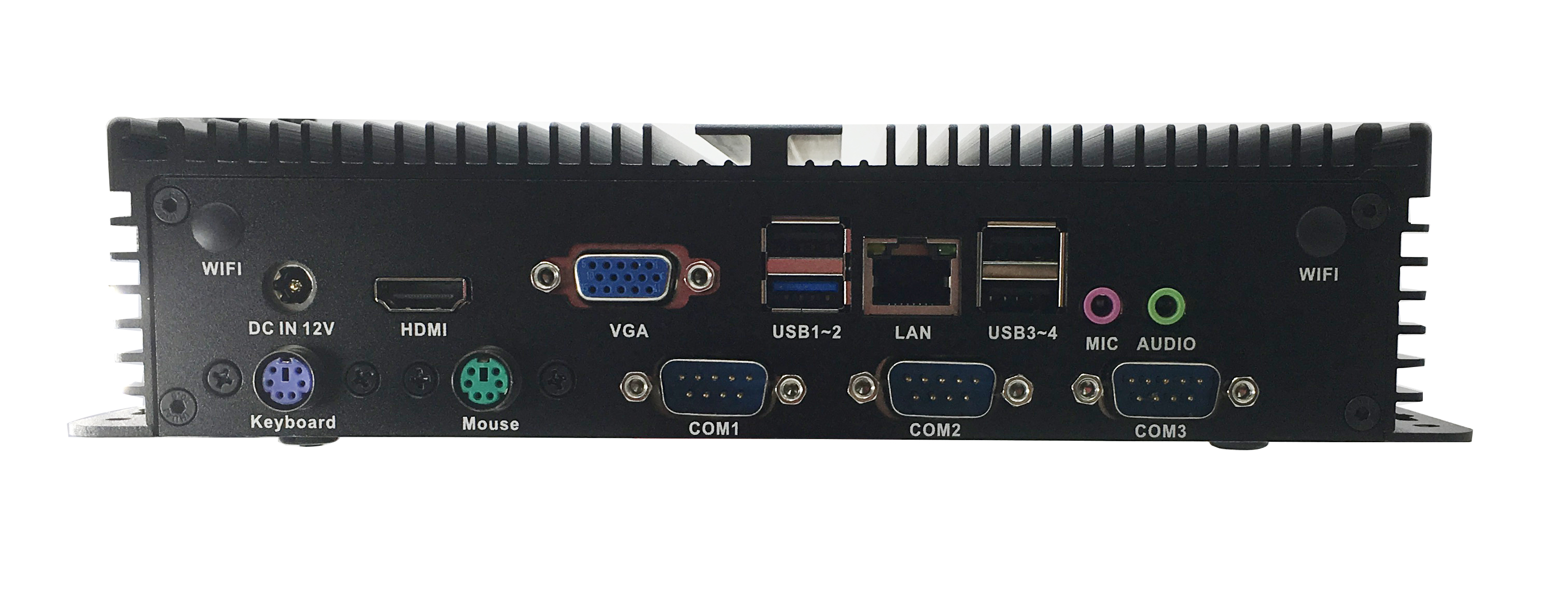

Rear panel

DC   IN

1

HDMI

1

VGA

1

USB

3×USB2.0，1×USB3.0

LAN

1×RJ45,   support 10/100/1000mbps adaptive network

Audio

1×Line-out，1×Mic-in

PS/2

1×PS/2   Keyboard，1×PS/2 Mouse

COM

3×RS232   COM, COM2/COM3 9 pin optional 5V/12V power supply, COM2 optional RS485 mode

Physical properties

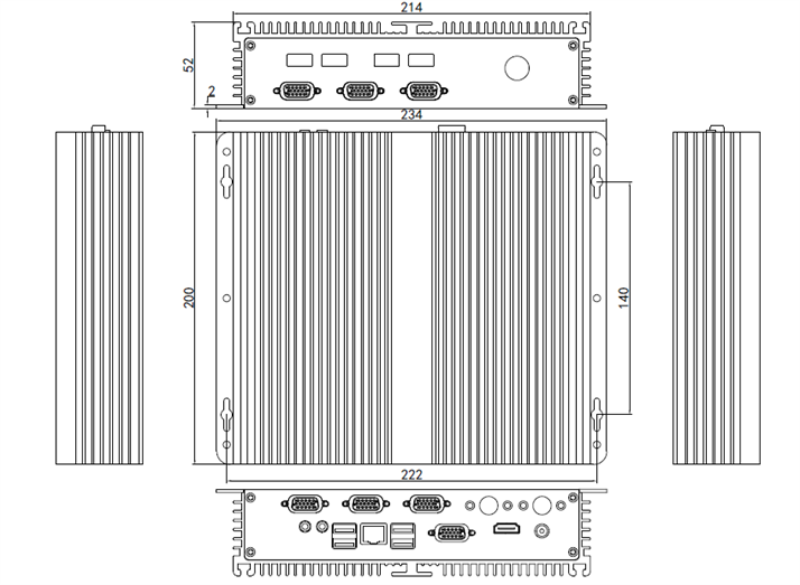

Size   (width × depth × height)/weight

234mm×200mm×52mm/about   2.3KG

Material/surface   finish

Aluminum   alloy/anodized black

The environment

Run

Temperature:   0~45℃, humidity: 5%~95%, no condensation

Storage

Temperature:   -20~75℃, humidity: 5%~95%, no condensation
